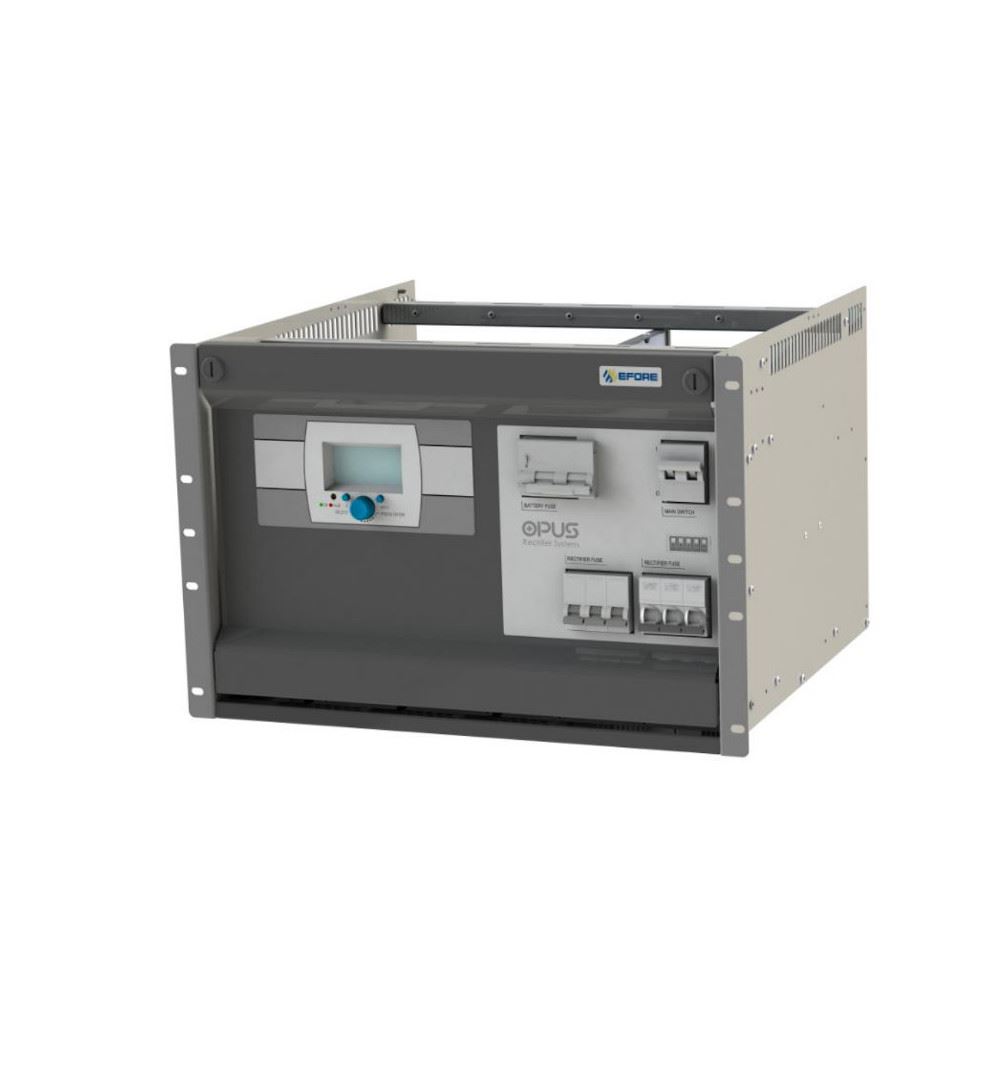

ENEDO OPUS HE 60-6.0 R 7U F Cabinet 7U-19" 60Vdc up to 6.0kW with 3 MHE modules slots
9220X0014569
Features:
Efficiency up to 97%
Convection cooling
Outputs 24, 48, 60, 110, 125, 220VDC
6.0 kW output power, 24VDC 4.5kW
Building block rack for cabinet integration,
Master-Slave 2 x 7U rack – power up to 16kW
VIDI+ I/O controller with remote and local
user interfaces
Flexible design with full front cabling
Safety:
Rack: EN61439-1, EN61439-2
Low voltage switchgear controlgear assemblies
Rectifiers: EN 62368-1, EN 50124-1 rail
EMC:
Rack: EN61439-1, EN61439-2
Rectifiers: EN 61000-6-1 / -2 / -3 / -4 / -5
EN 50121-4 rail, ETSI EN 300386 (48/60V)

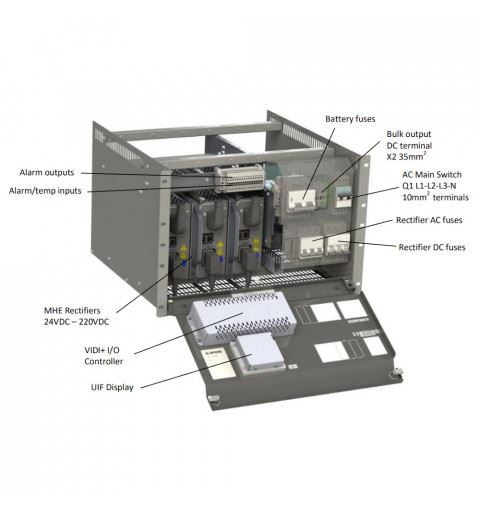

OPUS HE power systems are robust, free convection cooled, N+1 redundant backup power solutions for critical infrastructure applications such as transmission and distribution substations, process industries, railway signalling and substations and telecommunications. OPUS HE DC power systems consist of MHE rectifiers, VIDI+ controllers, Connections for mains and battery and load distribution. System is configurable to match with requirements of the application. 19" 7U Rack delivers maximum 6 kW output power at 48, 60, 110, 125 and 220 VDC and 4.5 kW at 24 VDC output. 19" 7U Racks include slots for maximum 3 rectifier modules, battery breakers and shunt for one string and bulk DC load output. Wall mounting, IP21 cover kit, temperature sensor, battery block voltage monitoring and BLVD are options. Master-slave set-up can be used to increase power higher than 6kW. 1x MCB 4 poles 20A main switch 3x MCB 16A single-pole for rectifier 1x MCB D125A bipolar battery protection.
9220X0014569
Data sheet
- Applications
- Industrial Automation
- POWER
- 6000watt
- VOLTAGE OUT
- 60Vdc
- CURRENT
- 100A
- VOLTAGE IN
- 230Vac
- NUMBER OF OUTPUTS
- 1
- CASE
- Metallico
- PROTECTION LEVEL
- IP20
- WEIGHT (kg)
- 15
- LENGTH (cm)
- 45,1
- WIDTH (cm)
- 48,2
- HEIGHT (cm)
- 35
- MANUFACTURER CODE
- 9220X0014569
New
