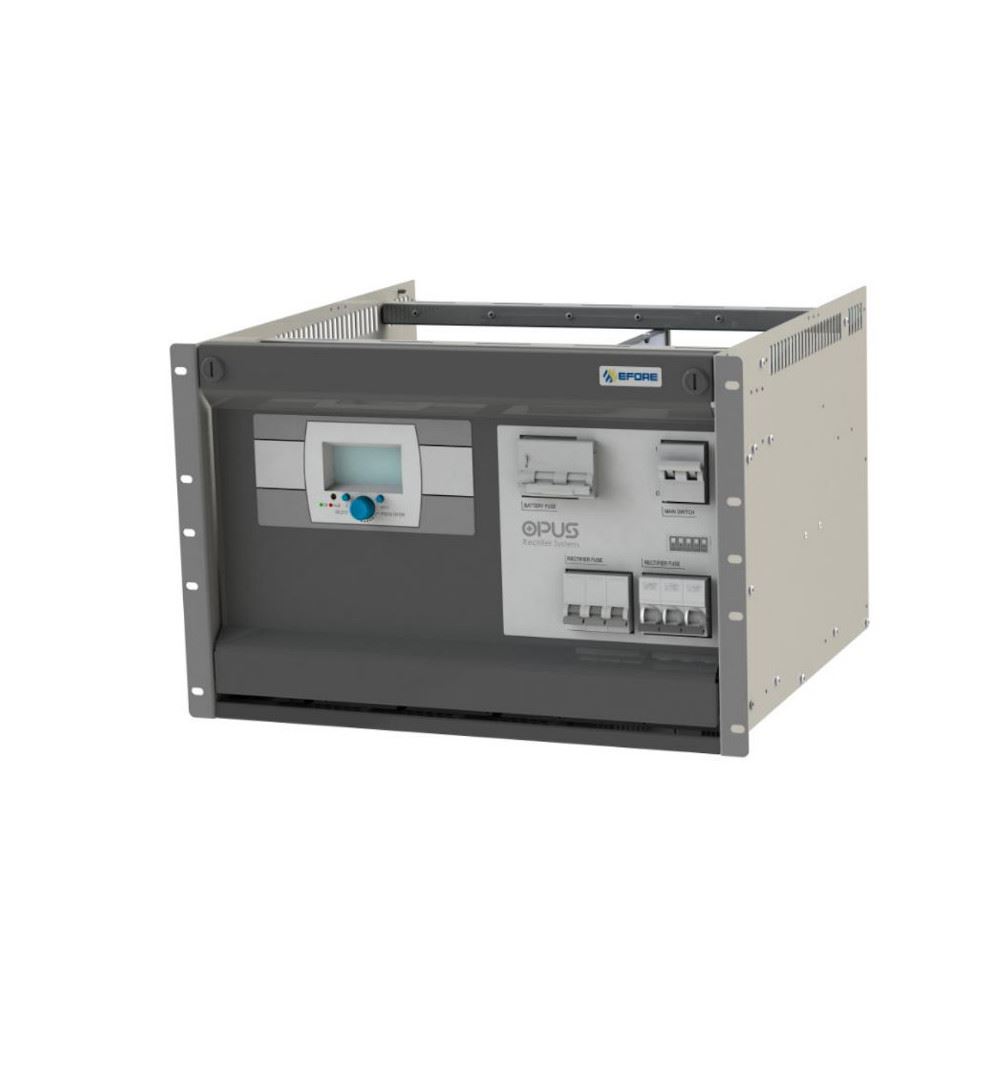

ENEDO OPUS HE 110-6.0 R 7U F Cabinet 7U-19" 110Vdc up to 6kW with 3 MHE modules slots

Datasheet Download

OPUS_HE7U.pdf

Features:

Efficiency up to 97%

Convection cooling

Outputs 24, 48, 60, 110, 125, 220VDC

6.0 kW output power, 24VDC 4.5kW

Building block rack for cabinet integration,

Master-Slave 2 x 7U rack – power up to 16kW

VIDI+ I/O controller with remote and local

user interfaces

Flexible design with full front cabling

Safety:

Rack: EN61439-1, EN61439-2

Low voltage switchgear controlgear assemblies

Rectifiers: EN 62368-1, EN 50124-1 rail

EMC:

Rack: EN61439-1, EN61439-2

Rectifiers: EN 61000-6-1 / -2 / -3 / -4 / -5

EN 50121-4 rail, ETSI EN 300386 (48/60V)

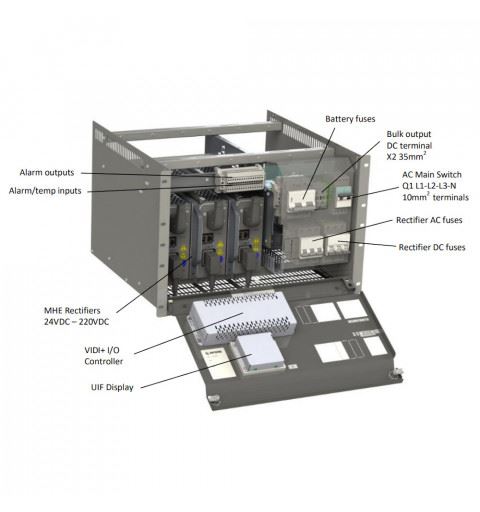

OPUS HE power systems are robust, free convection cooled, N+1 redundant backup power solutions for critical infrastructure applications such as transmission and distribution substations, process industries, railway signalling and substations and telecommunications. OPUS HE DC power systems consist of MHE rectifiers, VIDI+ controllers, Connections for mains and battery and load distribution. System is configurable to match with requirements of the application. 19" 7U Rack delivers maximum 6 kW output power at 48, 60, 110, 125 and 220 VDC and 4.5 kW at 24 VDC output. 19" 7U Racks include slots for maximum 3 rectifier modules, battery breakers and shunt for one string and bulk DC load output. Wall mounting, IP21 cover kit, temperature sensor, battery block voltage monitoring and BLVD are options. MOPUS HE power systems are robust, free convection cooled, N+1 redundant backup power solutions for critical infrastructure applications such as transmission and distribution
9220X0011271

Data sheet

Applications
Industrial Automation
POWER
6000watt
VOLTAGE OUT
110Vdc
CURRENT
55,5A
VOLTAGE IN
230Vac
NUMBER OF OUTPUTS
1
CASE
Metallico
PROTECTION LEVEL
IP20
WEIGHT (kg)
15
LENGTH (cm)
45,1
WIDTH (cm)
48,2
HEIGHT (cm)
35
MANUFACTURER CODE
9220X0011271
New
