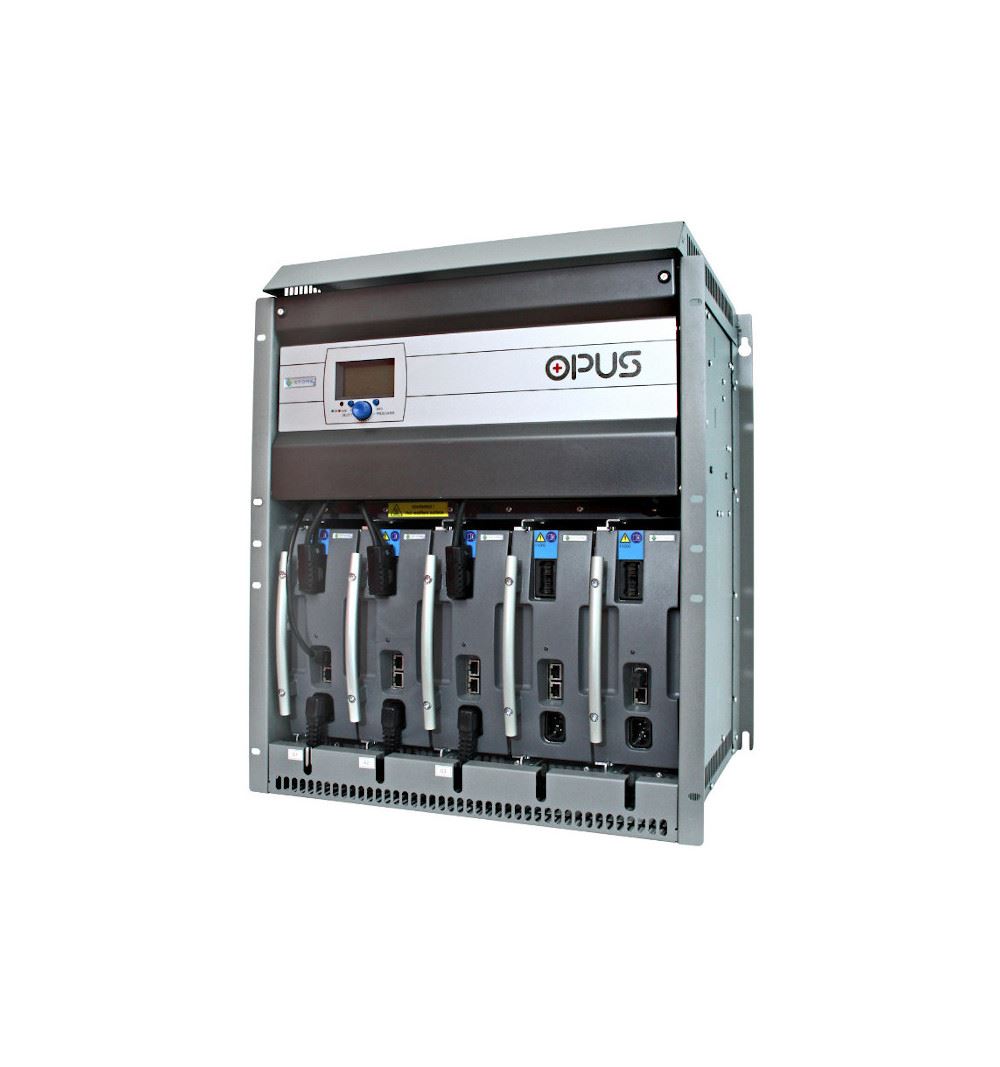

Enedo OPUS C 60 8 R 12U P Cabinet 12U-19" 60Vdc-GND up to 8kW with 5 MRC modules slots

95MS014

Datasheet Download

Features:

Convection cooling

Models for 24, 48, 60, 110, 220VDC

Max 8.0 kW output power (5.5kW for 24VDC

N+1 redundancy

Plus or Minus Grounded or Floating

Load Distribution 2-pole or 1-pole MCB

Options: Battery LVD, Load LVD, extra battery

connections, Temperature sensors, IP21

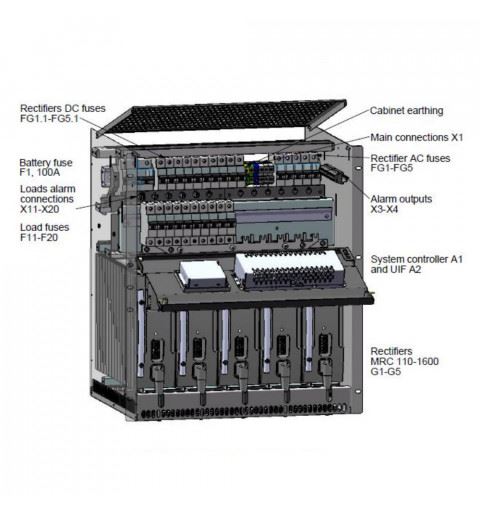

OPUS C DC power systems are robust, free convection cooled, N+1 redundant backup power solutions for critical infrastructure applications such as transmission and distribution substations, process industries and telecommunications. OPUS C DC power systems up to 8kW consist of MRC-rectifiers, VIDI+ controllers protection Up to 3x AC MCB 16A single-pole for the input MRC rectifier modules; 1x DC MCB 250A bipolar or 2x DC MCB 200A single-pole for battery protection. Distribution load up to 20x DC MCB 1-63A sinlge-pole or 10x DC MCB 1-63A bipolar.
95MS014

Data sheet

Applications
Industrial Automation
POWER
8000watt
VOLTAGE OUT
-60Bdc
CURRENT
134A
VOLTAGE IN
230Vac
NUMBER OF OUTPUTS
1
CASE
Metallico
PROTECTION LEVEL
IP20
WEIGHT (kg)
21
LENGTH (cm)
37
WIDTH (cm)
48,2
HEIGHT (cm)
53,3
MANUFACTURER CODE
95MS014
New
