Convection cooling
Max 4.8 kW output power (3.3 kW for 24 VDC)
N+1 Redundancy
Models for 24, 48, 60, 110, 125, 220 VDC
Options: Battery LVD, Temperature sensor, wall mounting & IP21 kit
Safety: IEC/EN 60950-1

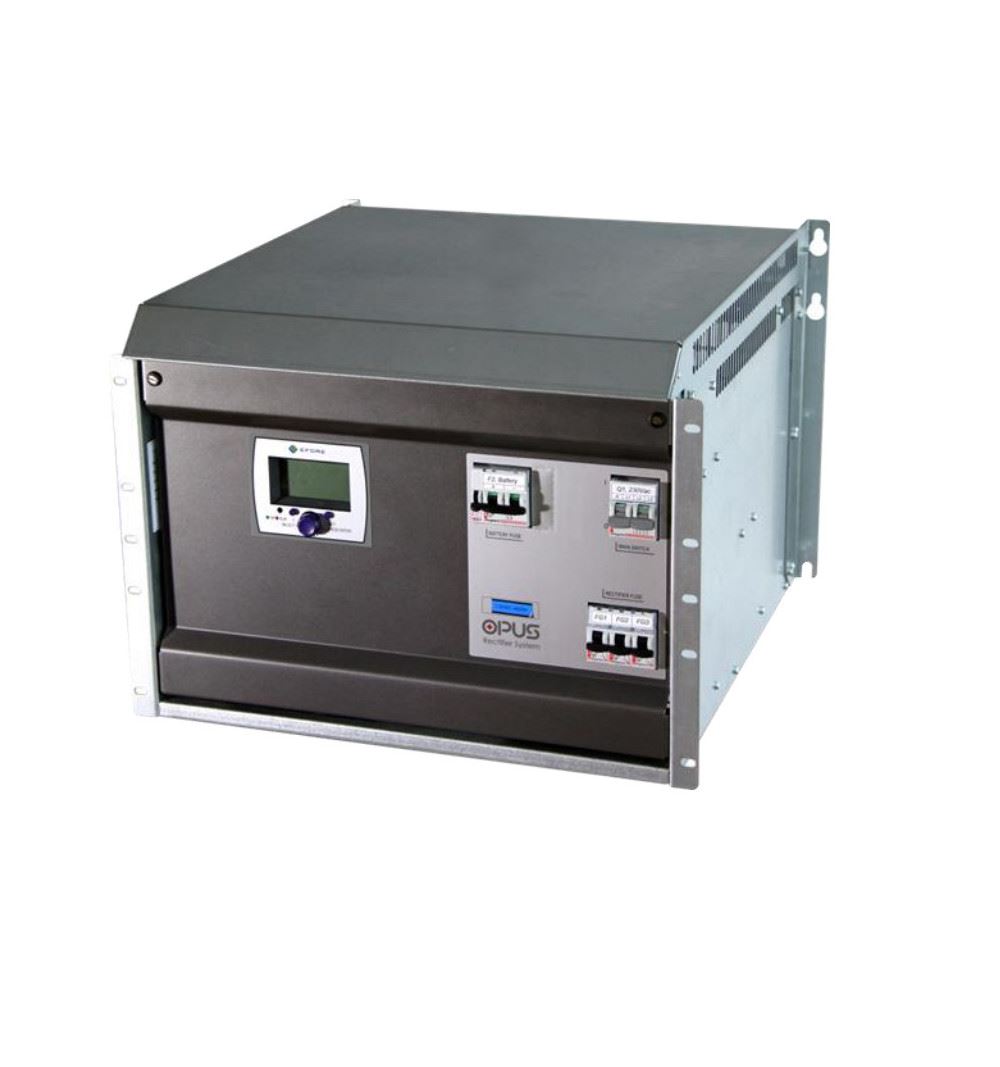

Enedo OPUS C 60 4.8 R 7U F Cabinet 7U-19" 60Vdc up to 4.8kW with 3 MRC modules slots
9220X0005009
Features:
Convection cooling
Max 4.8 kW output power (3.3 kW for 24 VDC)
N+1 Redundancy
Models for 24, 48, 60, 110, 125, 220 VDC
Options: Battery LVD, Temperature sensor, wall mounting & IP21 kit
Safety: IEC/EN 60950-1
OPUS C DC power systems are robust, free convection cooled, N+1 redundant backup power solutions for critical infrastructure applications such as transmission and distribution substations, process industries and telecommunications. OPUS C DC power systems up to 4,8kW consist of MRC-rectifiers, VIDI+ controllers protection Up to 3x AC MCB 16A single-pole for the input MRC rectifier modules; 1x DC MCB 100A bipolar for battery protection.
9220X0005009
Data sheet
- Applications
- Industrial Automation
- POWER
- 4800watt
- VOLTAGE OUT
- 60Vdc
- CURRENT
- 80A
- VOLTAGE IN
- 230Vac
- NUMBER OF OUTPUTS
- 1
- CASE
- Metallico
- PROTECTION LEVEL
- IP20
- WEIGHT (kg)
- 16,4
- LENGTH (cm)
- 45,1
- WIDTH (cm)
- 48,2
- HEIGHT (cm)
- 35
- MANUFACTURER CODE
- 9220X0005009
