RDQ 100-150

Datasheet Download

RDQ.pdf

Features:

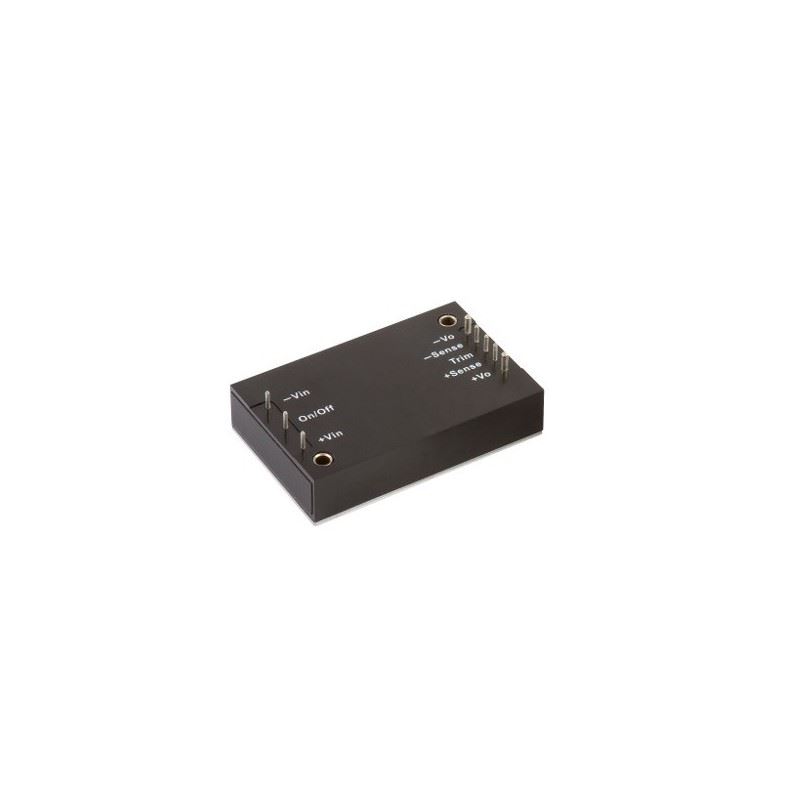

XP Power DC/DC Converter for rail applications 100-150W


XP Power DC/DC converter for rail applications.

Features:

- 110 VDC Input for Rail Applications
- Up to 92% Efficiency
- Quarter and Half Brick Packages
- -40 °C to +100 °C Operating Temperature
- Baseplate-cooled
- Remote On/Off & Remote Sense
- 3 Year Warranty

Model Name Input Output Power
RDQ100110S05 66 to 160 Vdc 5 V / 20 A 100W
RDQ100110S12 66 to 160 Vdc 12 V / 8.4 A 100W
RDQ100110S24 66 to 160 Vdc 24 V / 4.2 A 100W
RDQ150110S05 66 to 160 Vdc 5 V / 30 A 150W
RDQ150110S12 66 to 160 Vdc 12 V / 12.5 A 150W
RDQ150110S24 66 to 160 Vdc 24 V / 6.5 A 150W

Data sheet

Applications
DC-DC
Railway
Transportation
POWER
50W-100W
100W – 150W
150W – 300W
OUTPUT
Single
PRODUCT RANGE
Brick Type
PCB Mount
Rugged Harsh Environments
FIELD OF APPLICATION
Transportation
