2:1 & 4:1 Input Ranges
Efficiency up to 90%
Single Output
-40 °C to +100 °C Operating Temperature
Continuous Short Circuit Protection
Fivesided Metal Case
3 Year Warranty

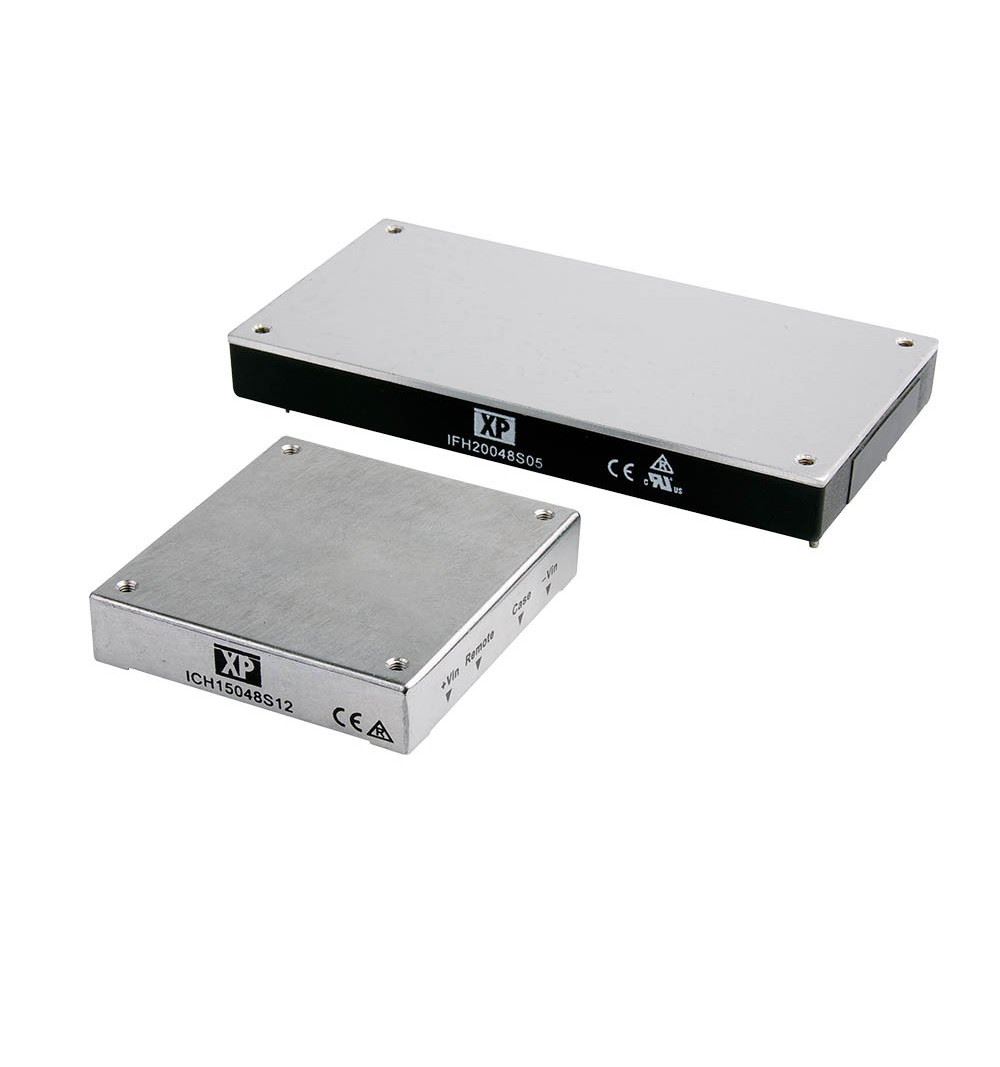

ICH15048S3V3 XP Power DC/DC Converter 150watt Vin: 36-75Vdc Vout: 3,3Vdc Iout: 30A
ICH15048S3V3
Features:
2:1 & 4:1 Input Ranges
Efficiency up to 90%
Single Output
-40 °C to +100 °C Operating Temperature
Continuous Short Circuit Protection
Fivesided Metal Case
3 Year Warranty
ICH15048S3V3 XP Power DC/DC Converter 150watt Vin: 36-75Vdc Vout: 3,3Vdc Iout: 30A EN55032, UL60950-1
ICH15048S3V3
Data sheet
- Applications
- Industrial Automation
- POWER
- 150watt
- VOLTAGE OUT
- 3,3Vdc
- CURRENT
- 30A
- VOLTAGE IN
- 36-75Vdc
- NUMBER OF OUTPUTS
- 1
- CASE
- Metallico
- PROTECTION LEVEL
- no IP
- WEIGHT (kg)
- 0,1
- LENGTH (cm)
- 5,79
- WIDTH (cm)
- 6,1
- HEIGHT (cm)
- 1,27
- MANUFACTURER CODE
- ICH15048S3V3
New
