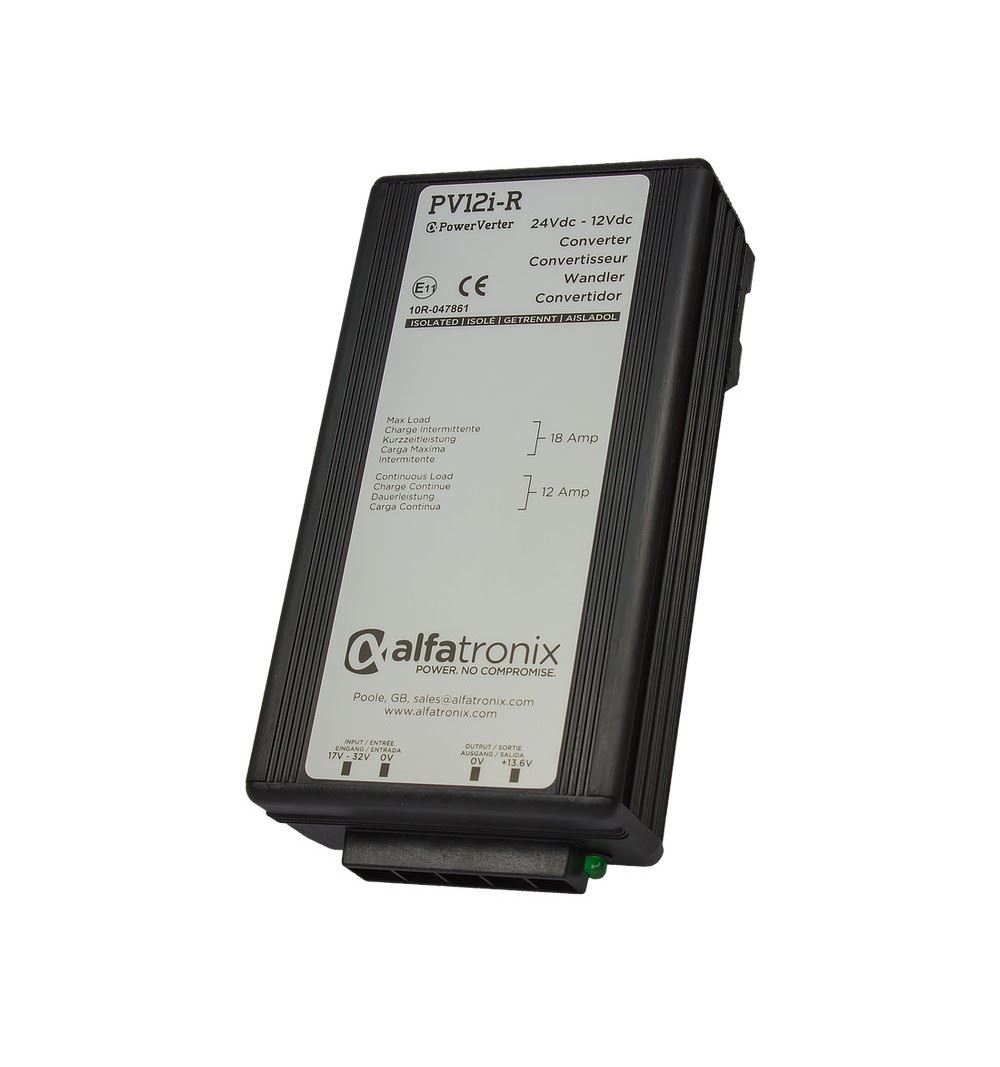

Alfatronix PV12i-R DC-DC Converter Railway In.24Vdc Out.12Vdc 160watt

PV12i-R

Datasheet Download

Features:

Galvanic isolation solution with approval of the railway sector

Compliant with RF immunity, transient and electrostatic discharge standards including EN50121 and EN61004

shocks and vibrations according to EN61373.

Used in conjunction with the USB Chargers PVPro series to provide approval to EN 50155 (EN 50121-3-2) and other suitable equipment

Alfatronix PV12i-R DC-DC Converter Railway In.24Vdc Out.12Vdc 160watt
PV12i-R

Data sheet

Applications
Railway
POWER
160watt
VOLTAGE OUT
12Vdc
CURRENT
12A
VOLTAGE IN
24Vdc
NUMBER OF OUTPUTS
1
CASE
Alluminio Anodizzato
PROTECTION LEVEL
IP53
WEIGHT (kg)
0,59
LENGTH (cm)
16,7
WIDTH (cm)
8,7
HEIGHT (cm)
5
MANUFACTURER CODE
PV12i-R
New
